FREE NEET Physics Practice Questions-Electrostatics

NEET is one of the toughest medical examinations in the country, which enables students to seek admissions to their favorite medical colleges across the country. When the stakes are high, your NEET preparation has to be consistent and full-proof. With lakhs of students competing every year, you must ensure that your preparation is up to the mark because every mark in NEET counts.

Most NEET aspirants grapple with Physics subjects. So, what do most toppers do? They solve as many as sample NEET questions for Physics to strengthen their grip. You can work smart too by solving sample NEET-UG questions and previous year’s questions of medical entrance exams.

In this article, Darwin presents you with 10 sample questions from the Physics Chapter Electrostatics. Solving chapter-wise NEET questions is a splendid example of working incrementally. You will know exactly how good your understanding is of this NEET chapter. It gives you an edge over others and helps you to improve your NEET prep.

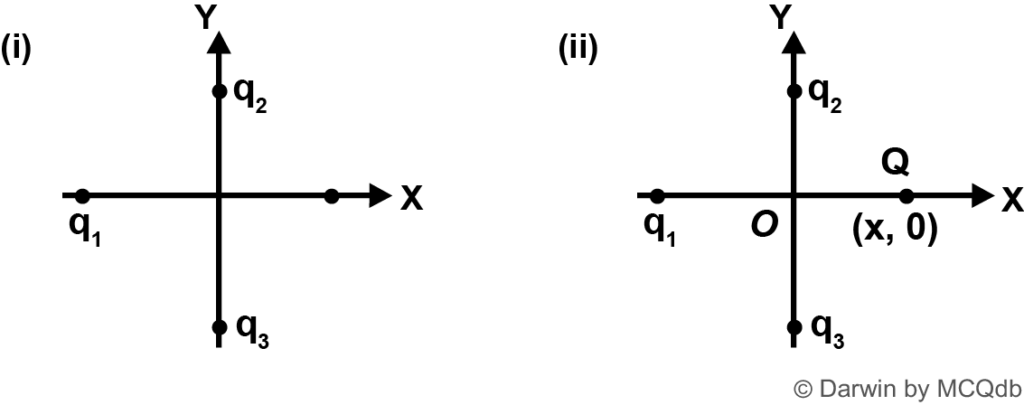

Q1. In figure two positive charges q2 and q3 fixed along the Y-axis, exert a net electric force in the +x-direction on a charge q1 fixed along the X-axis. If a positive charge Q is added at (x,0), then the force on q1

A. shall increase along the positive X-axis.

B. shall decrease along the positive X-axis.

C. shall point along the negative X-axis.

D. shall increase but the direction changes because of the intersection of Q with q2 and q3

Click here for answer and detailed explanation.

Q2. An electric dipole placed in a non-uniform electric field experiences

A. Both a torque and a net force

B. Only a force but no torque

C. Only a torque but no net force

D. No torque and no net force

Click here for answer and detailed explanation.

Q3. Two equal  charges  -q are fixed at the point (0, α) and (0,-α) on the y-axis. A positive charge Q is released from rest at the point (2α, 0) on the x-axis. The charge will:

A. execute SHM about the origin

B. move to the origin and remain at rest

C. move to infinity

D. execute oscillatory but not SHM

Click here for answer and detailed explanation.

Q4. Consider two conducting spheres of radii R1 and R2 with R1> R2. If the two are at the same potential, and the larger sphere has more charge than the smaller sphere, then

A. the charge density of smaller sphere is less than that of larger sphere.

B. the charge density of smaller sphere is more than that of larger sphere.

C. both spheres may have same charge density.

D. none of these.

Click here for answer and detailed explanation.

Q5. Two copper spheres of same radii, one hollow and the other solid are charged to the same potential. Which one of the following will hold more charge?

A. Both will hold equal charge

B. Solid sphere

C. Hollow sphere

D. Nothing can be predicted

Click here for answer and detailed explanation.

Q6. An electron having charge e and mass m is moving in a uniform electric field E. Its acceleration will be:

A. ε2m

B. εEm

C. εE2m

D. mEε

Click here for answer and detailed explanation.

Q7. A capacitor has some dielectric between its plates, and the capacitor is connected to a dc source. The battery is now disconnected and then the dielectric is removed, then

A. capacitance will increase.

B. energy stored will decrease.

C. field will increase.

D. voltage will decrease.

Click here for answer and detailed explanation.

Q8. Two vertical metallic plates carrying equal and opposite charges are kept parallel to each other like a parallel plate capacitor. A small spherical metallic ball is suspended by a long insulated thread such that it hangs freely in the centre of the two metallic plates. The ball, which is uncharged, is taken slowly towards the positively charged plate and is made to touch that plate. Then the ball will

A. stick to the positively charged plate

B. come back to its original position and will remain there

C. oscillate between the two plates touching each plate in turn

D. oscillate between the two plates without touch them

Click here for answer and detailed explanation.

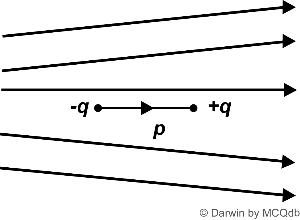

Q9. Figure shows electric field lines in which an electric dipole p is placed as shown. Which of the following statements is correct?

A. The dipole will not experience any force

B. The dipole will experience a force towards right

C. The dipole will experience a force towards left

D. The dipole will experience a force upwards

Click here for answer and detailed explanation.

Q10. There exists a non-uniform electric field along x-axis as shown in the figure below. The field increases at a uniform rate along +ve x-axis. A dipole is placed inside the field as shown. Which one of the following is correct for the dipole?

A. Dipole moves along positive x-axis and undergoes a clockwise rotation

B. Dipole moves along negative x-axis and undergoes a clockwise rotation

C. Dipole moves along positive x-axis and undergoes an anticlockwise rotation

D. Dipole moves along negative x-axis and undergoes an anticlockwise rotation

Click here for answer and detailed explanation.

Solving these questions can help you get accustomed to the marking scheme of NEET Physics, weightage of chapters, important topics, and types of questions asked. Practice from over 55000 NEET-UG MCQs from the Darwin app to get an understanding of the NEET 2022 exam.
